N 326 ECM
Additional Details
Single row cylindrical roller bearings are designed to handle high radial loads combined with high speeds. N-type bearings can accommodate axial movement in both directions. A key feature is their separable design, which simplifies installation and allows for easy replacement of bearing components.

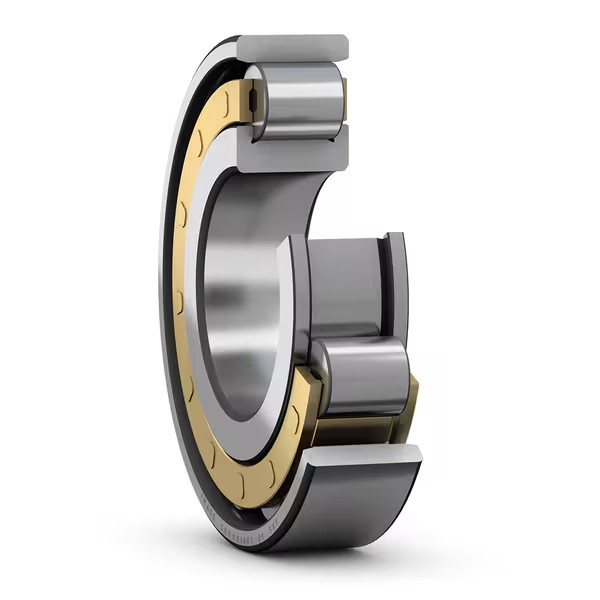

N 326 ECM
Cylindrical roller bearings
Technical Specifications
| Series description | Cylindrical roller, N (no flange on outer ring) |
|---|---|
| ID d (mm) | 130 |
| OD D (mm) | 280 |
| Width B/T/H (mm) | 58 |
| Dim. | B |
| Bore | รูตรง (Cylindrical bore) |
| Sealing | เปิด (ไม่มีซีล/ฝาปิด) |
| Cage | รังทองเหลือง machined, optimised |
| Clearance | ปกติ |
| Special features | ร่อง snap ring ที่วงนอก |
| SKF Explorer | ★ Explorer |
| C dynamic (kN) | 720 |
| C0 static (kN) | 750 |
| Pu fatigue (kN) | 81.5 |
| Ref. speed (r/min) | 2400 |
| Limiting speed (r/min) | 3000 |
| Mass (kg) | 18 |
