NNCF 4934 CV
Additional Details
NNCF type bearings have three flanges attached as a single piece to the inner ring and one flange attached as a single piece to the outer ring. This allows the bearing to be axially oriented in one direction. A retaining ring is inserted in the outer ring on the opposite side of the flange and serves to hold all the components together.

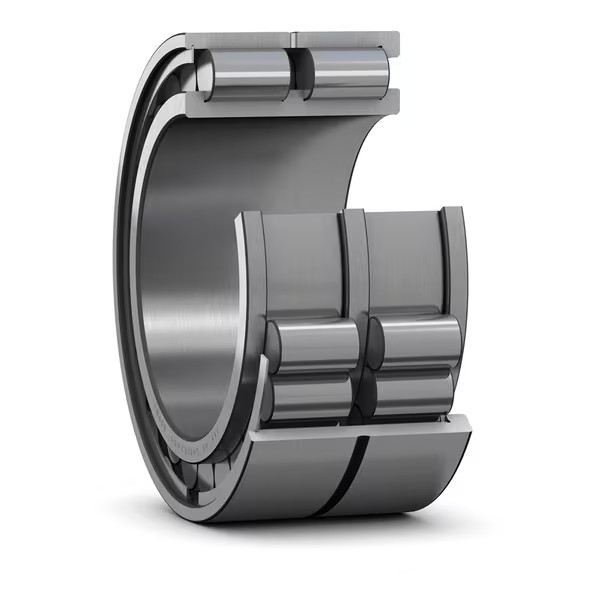

NNCF 4934 CV
Cylindrical roller bearings
Technical Specifications
| Series description | Cylindrical roller, NNCF (full complement, double row) |
|---|---|
| ID d (mm) | 170 |
| OD D (mm) | 230 |
| Width B/T/H (mm) | 60 |
| Dim. | B |
| Bore | รูตรง (Cylindrical bore) |
| Sealing | เปิด (ไม่มีซีล/ฝาปิด) |
| Cage | |
| Clearance | ปกติ |
| Special features | |
| SKF Explorer | |
| C dynamic (kN) | 457 |
| C0 static (kN) | 950 |
| Pu fatigue (kN) | 100 |
| Ref. speed (r/min) | 1200 |
| Limiting speed (r/min) | 1500 |
| Mass (kg) | 7.2 |
