NUP 18/1000 MA/HB1
Additional Details
Single row cylindrical ball bearings (NUPs) are designed to handle high radial loads combined with high speeds. They feature two combined flanges on the outer ring and one combined and one removable flange on the inner ring. NUP bearings can accommodate shaft positions in both directions. A key feature is their separable design, which simplifies installation and allows for easy replacement of bearing components.

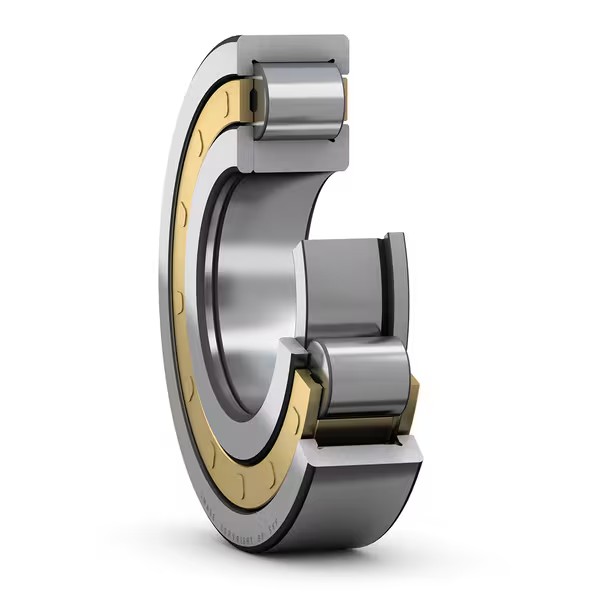

NUP 18/1000 MA/HB1
Cylindrical roller bearings
Technical Specifications
| Series description | Cylindrical roller, NUP (flange both sides + loose ring) |
|---|---|
| ID d (mm) | 1000 |
| OD D (mm) | 1220 |
| Width B/T/H (mm) | 100 |
| Dim. | B |
| Bore | รูตรง (Cylindrical bore) |
| Sealing | เปิด (ไม่มีซีล/ฝาปิด) |
| Cage | รังทองเหลือง machined, inner-ring guided |
| Clearance | ปกติ |
| Special features | |
| SKF Explorer | |
| C dynamic (kN) | 2640 |
| C0 static (kN) | 6550 |
| Pu fatigue (kN) | 400 |
| Ref. speed (r/min) | 400 |
| Limiting speed (r/min) | 530 |
| Mass (kg) | 269 |
