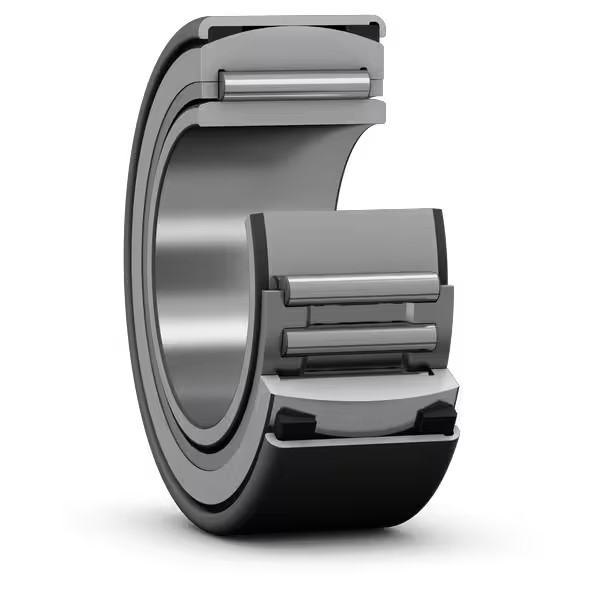

Alignment needle roller bearing
Other Series in this Category
- Alignment needle roller bearing
- combination bearing that combines needle bearings and angular contact ball bearings.
- Needle roller with inner ring (NA)
- Needle roller with inner ring (NKI)
- Needle roller with seal (NKIS)
- Needle roller without inner ring (RNA)
- Single row needle roller and cage assembly
Filters
Type: Needle roller bearings
Series: Alignment needle roller bearing
9 results
| Designation (Part No.) | Bearing Type | Series description | Bore diameter (mm) | Outside diameter (mm) | Width (mm) | Dim. | Bore | Sealing | Cage | Clearance | Special features | SKF Explorer | Basic dynamic load (kN) | Basic static load (kN) | Fatigue load (kN) | Ref. speed (r/min) | Limiting speed (r/min) | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PNA 12/28 | Needle roller bearings | Alignment needle roller bearing | 12 | 28 | 12 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | 7.37 | 9.15 | 1.08 | 24000 | 28000 | 0.037 | |||
| PNA 15/32 | Needle roller bearings | Alignment needle roller bearing | 15 | 32 | 16 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 12.8 | 17.6 | 2.12 | 22000 | 24000 | 0.062 | ||
| PNA 17/35 | Needle roller bearings | Alignment needle roller bearing | 17 | 35 | 16 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 13.2 | 19.3 | 2.28 | 19000 | 22000 | 0.073 | ||
| PNA 20/42 | Needle roller bearings | Alignment needle roller bearing | 20 | 42 | 20 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 19 | 32.5 | 4 | 16000 | 18000 | 0.14 | ||
| PNA 22/44 | Needle roller bearings | Alignment needle roller bearing | 22 | 44 | 20 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | 22 | 36.5 | 4.55 | 14000 | 16000 | 0.15 | |||
| PNA 25/47 | Needle roller bearings | Alignment needle roller bearing | 25 | 47 | 20 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | 22.9 | 38 | 4.8 | 13000 | 15000 | 0.16 | |||
| PNA 30/52 | Needle roller bearings | Alignment needle roller bearing | 30 | 52 | 20 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 24.6 | 45 | 5.6 | 11000 | 13000 | 0.18 | ||
| PNA 35/55 | Needle roller bearings | Alignment needle roller bearing | 35 | 55 | 20 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 26.4 | 51 | 6.3 | 10000 | 11000 | 0.18 | ||
| PNA 40/62 | Needle roller bearings | Alignment needle roller bearing | 40 | 62 | 20 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 27.5 | 57 | 7.1 | 9000 | 10000 | 0.23 |
