ค้นหาข้อมูลสินค้าและตลับลูกปืน
bearings

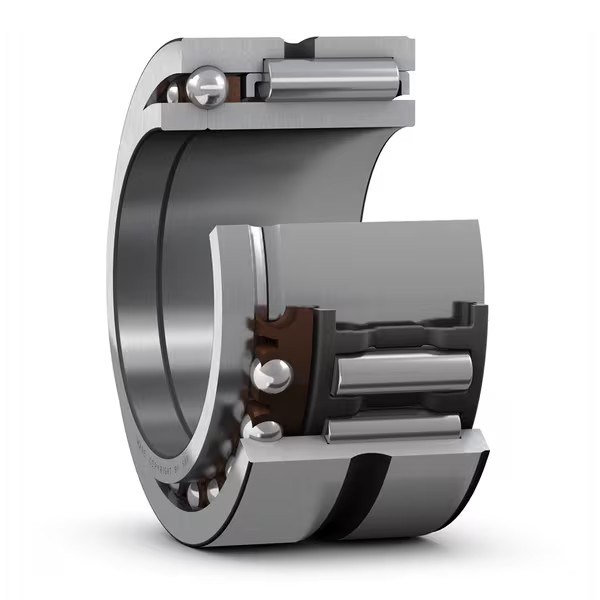

combination bearing that combines needle bearings and angular contact ball bearings.
Other Series in this Category
- Alignment needle roller bearing
- combination bearing that combines needle bearings and angular contact ball bearings.
- Needle roller with inner ring (NA)
- Needle roller with inner ring (NKI)
- Needle roller with seal (NKIS)
- Needle roller without inner ring (RNA)
- Single row needle roller and cage assembly
Filters
Type: Needle roller bearings
Series: combination bearing that combines needle bearings and angular contact ball bearings.
15 results
| Designation (Part No.) | Bearing Type | Series description | Bore diameter (mm) | Outside diameter (mm) | Width (mm) | Dim. | Bore | Sealing | Cage | Clearance | Special features | SKF Explorer | Basic dynamic load (kN) | Basic static load (kN) | Fatigue load (kN) | Ref. speed (r/min) | Limiting speed (r/min) | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NKIB 59/22 | Needle roller bearings | combination bearing that combines needle bearings and angular contact ball bearings. | 22 | 39 | 25 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 23 | 23.3 | 4.93 | 14000 | 15000 | 0.12 | ||
| NKIB 5901 | Needle roller bearings | combination bearing that combines needle bearings and angular contact ball bearings. | 12 | 24 | 17.5 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 16 | 8.09 | 1.92 | 22000 | 26000 | 0.043 | ||
| NKIB 5902 | Needle roller bearings | combination bearing that combines needle bearings and angular contact ball bearings. | 15 | 28 | 20 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 18 | 11.2 | 2.37 | 19000 | 22000 | 0.052 | ||
| NKIB 5903 | Needle roller bearings | combination bearing that combines needle bearings and angular contact ball bearings. | 17 | 30 | 20 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 18 | 11.4 | 2.74 | 18000 | 20000 | 0.058 | ||
| NKIB 5904 | Needle roller bearings | combination bearing that combines needle bearings and angular contact ball bearings. | 20 | 37 | 25 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 23 | 21.6 | 4.21 | 15000 | 17000 | 0.11 | ||
| NKIB 5905 | Needle roller bearings | combination bearing that combines needle bearings and angular contact ball bearings. | 25 | 42 | 25 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 23 | 24.2 | 5.26 | 13000 | 15000 | 0.13 | ||
| NKIB 5906 | Needle roller bearings | combination bearing that combines needle bearings and angular contact ball bearings. | 30 | 47 | 25 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 23 | 25.5 | 6.32 | 11000 | 13000 | 0.15 | ||
| NKIB 5907 | Needle roller bearings | combination bearing that combines needle bearings and angular contact ball bearings. | 35 | 55 | 30 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 27 | 31.9 | 8.42 | 9500 | 11000 | 0.25 | ||
| NKIB 5908 | Needle roller bearings | combination bearing that combines needle bearings and angular contact ball bearings. | 40 | 62 | 34 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 30 | 42.9 | 10.9 | 8000 | 9500 | 0.32 | ||
| NKIB 5909 | Needle roller bearings | combination bearing that combines needle bearings and angular contact ball bearings. | 45 | 68 | 34 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 30 | 45.7 | 12 | 7500 | 8500 | 0.38 | ||
| NKIB 5910 | Needle roller bearings | combination bearing that combines needle bearings and angular contact ball bearings. | 50 | 72 | 34 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 30 | 47.3 | 13.7 | 7000 | 8000 | 0.39 | ||
| NKIB 5911 | Needle roller bearings | combination bearing that combines needle bearings and angular contact ball bearings. | 55 | 80 | 38 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 34 | 57.2 | 16.7 | 6300 | 7000 | 0.56 | ||
| NKIB 5912 | Needle roller bearings | combination bearing that combines needle bearings and angular contact ball bearings. | 60 | 85 | 38 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 34 | 60.5 | 18 | 6000 | 6700 | 0.6 | ||
| NKIB 5913 | Needle roller bearings | combination bearing that combines needle bearings and angular contact ball bearings. | 65 | 90 | 38 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 34 | 61.6 | 19.2 | 5600 | 6300 | 0.64 | ||
| NKIB 5914 | Needle roller bearings | combination bearing that combines needle bearings and angular contact ball bearings. | 70 | 100 | 45 | B | รูตรง (Cylindrical bore) | เปิด (ไม่มีซีล/ฝาปิด) | ปกติ | ★ Explorer | 40 | 84.2 | 25 | 5000 | 5600 | 0.99 |
