ตัวเสื้อตลับลูกปืนรุ่น SNL : ทดแทนรุ่น SNH

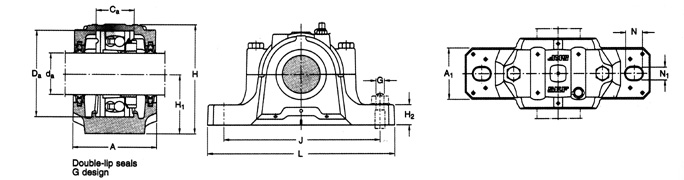

SNL PLUMMER BLOCK HOUSINGS

รหัสสินค้า
ขนาดเป็นนิ้ว
da
da, inch
A
H
H1
J
L
G
SNL
SNL 207
35
-
 82 93 50 150 185 12
SNL 208-307
35,40
-
 85 108 60 170 205 12
SNL 209
45
-
 85 109 60 170 205 12
SNL 210
50
-
 90 112 60 170 205 12
SNL 211
55
-
 95 128 70 210 255 16
SNL 212
60
-
 105 134 70 210 255 16
SNL 213
65
-
 110 149 80 230 275 16
SNL 215
75
-
 115 155 80 230 280 16
SNL 216
80
-
 120 177 95 260 315 20
SNL 217
85
-
 125 183 95 260 320 20
SNL 218
90
-
 140 194 100 290 345 20
SNL 506-605
20,25,30
3/4",15/16",1"
 77 89 50 150 185 12
SNL 506-605K7
20,25,30
3/4",15/16",1"
 77 89 50 150 185 12
SNL 507-606
25,30,35
15/16",1",1.1/8",1.3/16"
 82 93 50 150 185 12
SNL 507-606K7
25,30,35
15/16",1",1.1/8",1.3/16"
 82 93 50 150 185 12
SNL 508-607
30,35,40
1.1/8",1.3/16",1.1/4",1.3/8"
 85 107,108 60 170 205 12
SNL 508-607K7
30,35,40
1.1/8",1.3/16",1.1/4",1.3/8"
 85 108 60 170 205 12
SNL 509
40
1.7/16",1.1/2"
 85 109 60 170 205 12
SNL 509K7
40
1.7/16",1.1/2"
 85 109 60 170 205 12
SNL 510-608
35,45,50
1.1/4",1.3/8",1.11/16",1.3/4"
 90 113 60 170 205 12
SNL 510-608K7
35,45,50
1.1/4",1.3/8",1.11/16",1.3/4"
 90 113 60 170 205 12
SNL 511-609
40,45,50,55
1.7/16",1.15/16",1.1/2",2"
 95 127,128 70 210 255 16
SNL 511-609K7
40,45,50,55
1.7/16",1.15/16",1.1/2",2"
 95 127,128 70 210 255 16
SNL 512-610
45,50,55,60
1.11/16",1.3/4",2.1/8"
 105 133,134 70 210 255 16
SNL 512-610K7
45,50,55,60
1.11/16",1.3/4",2.1/8"
 105 133,134 70 210 255 16
SNL 513-611
45,50,55,60
1.15/16",2",2.3/16",2.1/4"
 110 148,149 80 230 275 16
SNL 513-600K7
45,50,55,60
1.15/16",2",2.3/16",2.1/4"
 110 148,149 80 230 275 16
SNL 515-612
55,60,65,75
21.1/8",2.1/2",2.7/16"
 115 154,155 80 230 280 16
SNL 515-612K7
55,60,65,75
21.1/8",2.1/2",2.7/16"
 115 154,155 80 230 280 16
SNL 516-613
60,65,70,80
2.3/16",2.1/4",2.11/16",2.3/4"
 120 175,177 95 260 315 20
SNL 516-613K7
60,65,70,80
2.3/16",2.1/4",2.11/16",2.3/4"
 120 175,177 95 260 315 20
SNL 517
70,75
2.15/16",3",
 125 183 95 260 320 20
SNL 517K7
70,75
2.15/16",3",
 125 183 95 260 320 20
SNL 518-615
65,75,80,90
2.7/16",2.1/2",3.3/16",3.1/4"
 140 193.194 100 290 345 20
SNL 518-615K7
65,75,80,90
2.7/16",2.1/2",3.3/16",3.1/4"
 140 193.194 100 290 345 20
SNL 519-616
70,80,85
2.11/16",2.3/4"
 145 210,212 112 290 345 20
SNL 519-616K7
70,80,85
2.11/16",2.3/4"
 145 210,212 112 290 345 20
SNL 520-617
75,85,90,100
2.15/16",3",3.7/16",3.1/2"
 160 215,218 112 320 380 24
SNL 520-617K7
75,85,90,100
2.15/16",3",3.7/16",3.1/2"
 160 215,218 112 320 380 24
SNL 522-619
85,95,100,110
3.1/4",3.15/16",4"
 175 239,242 125 350 410 24
SNL 522-619K7
85,95,100,110
3.1/4",3.15/16",4"
 175 239,242 125 350 410 24
SNL 524-620
90,100,110,120
3.7/16",3.1/2",4.3/16",4.1/4"
 185 271 140 350 410 24
SNL 524-620K7
90,100,110,120
3.7/16",3.1/2",4.3/16",4.1/4"
 185 271 140 350 410 24
SNL 526
115,130
4.7/16",4.1/2"
 190 290 150 380 445 24
SNL 526K7
115,130
4.7/16",4.1/2"
 190 290 150 380 445 24
SNL 528
125,140
4.15/16",5"
 205 302 150 420 500 30
SNL 528K7
125,140
4.15/16",5"
 205 302 150 420 500 30
SNL 530
135,150
5.3/16",5.1/4"
 220 323 160 450 530 30
SNL 530K7
135,150
5.3/16",5.1/4"
 220 323 160 450 530 30
SNL 532
140,160
5.7/16",5.1/2"
 235 344 170 470 550 30
SNL 532K7
140,160
5.7/16",5.1/2"
 235 344 170 470 550 30
